PSTS (Precast Slab Track System)

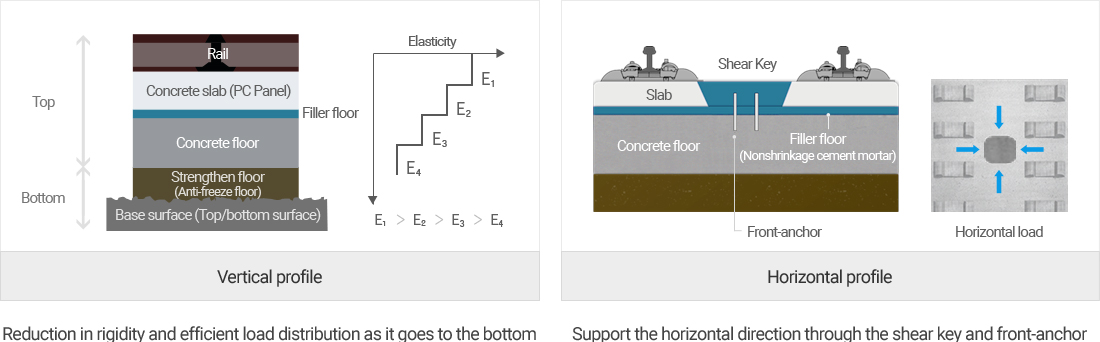

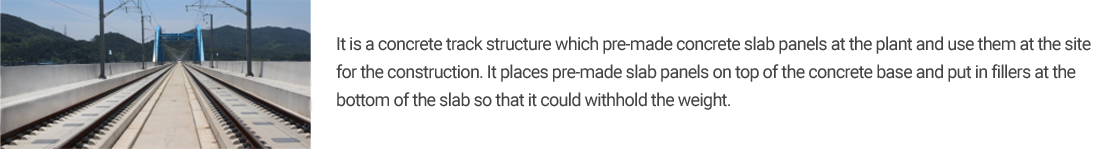

System Outline
Type of PSTS

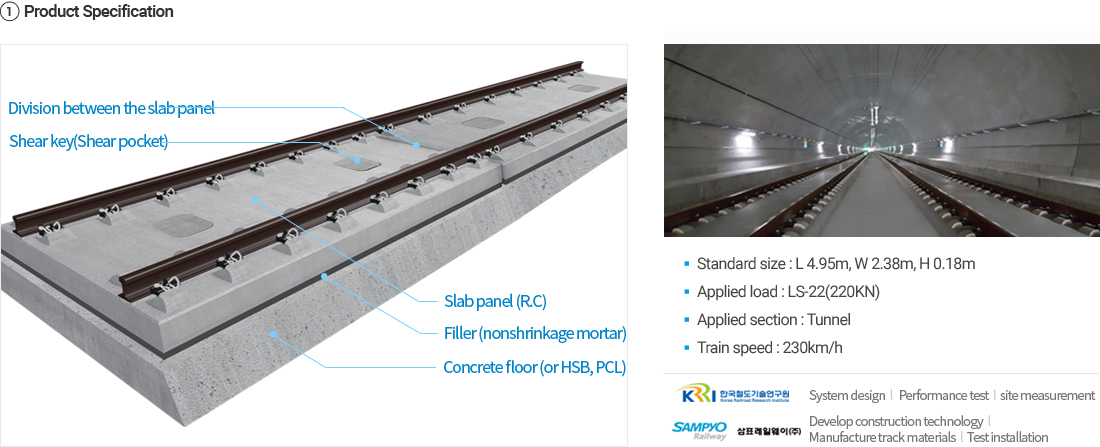

Conventional railway (PST-B)

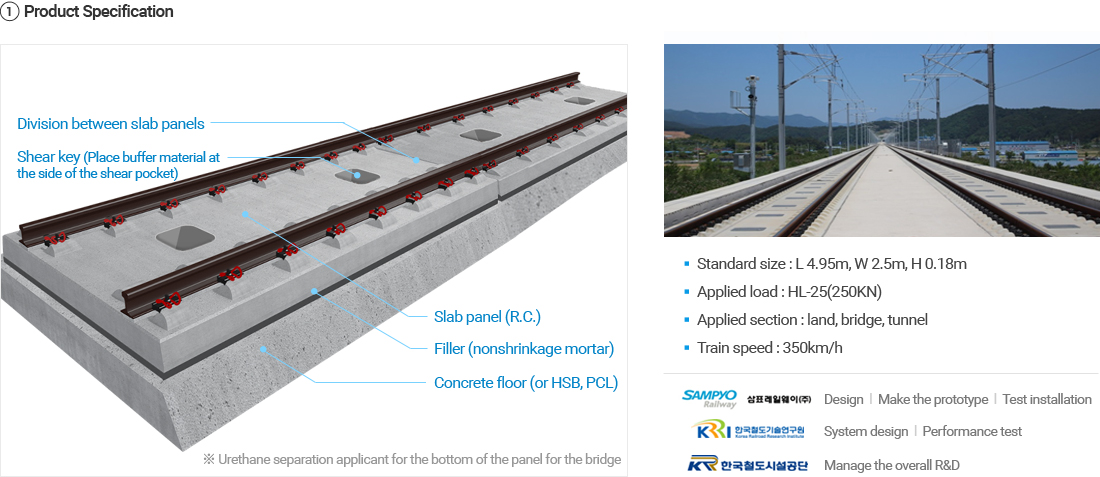

HSR(PST-C)

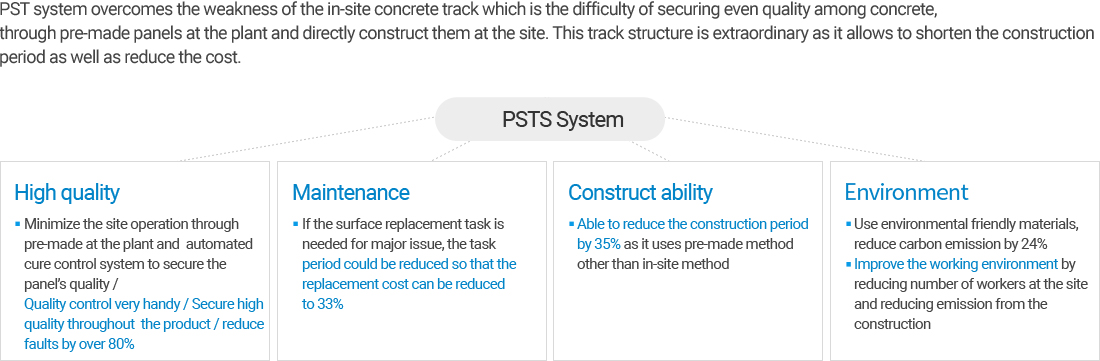

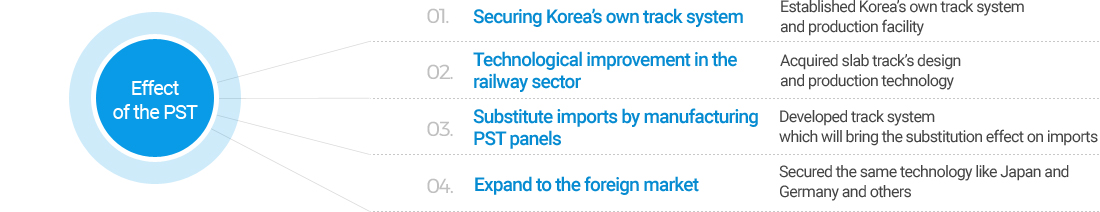

Effect of the PSTS

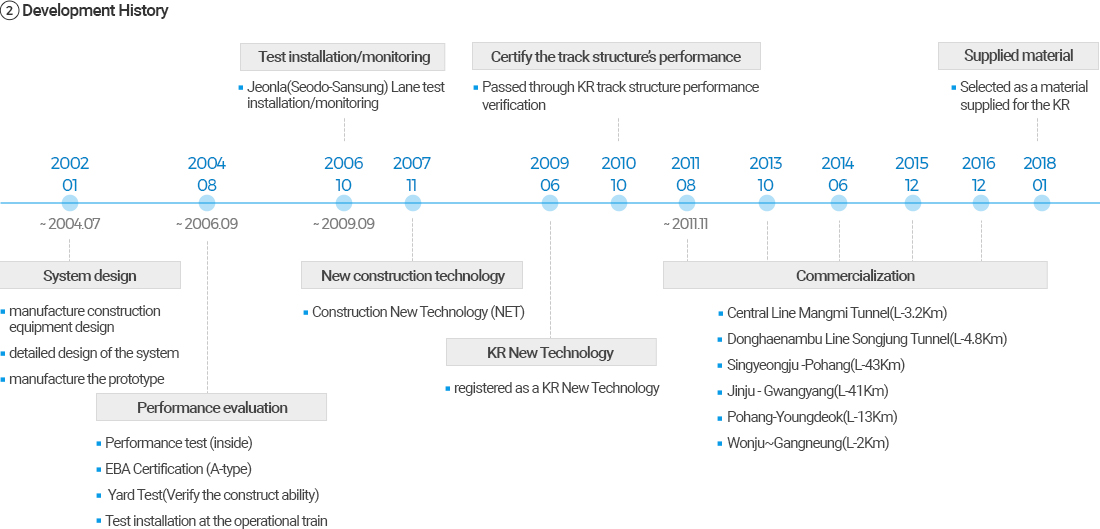

Frontier technology - PST System
Performance Record - PSTS
-
Year Project Name Performance Expansion(km) Panel Type No. of Panel 2012 Ahsin~Pandae(Jungang Line) 4.8 Conventional 1,280 2013 Bujun~Songjun(SongjungT) 3.2 Conventional 700 2014 Honam HSR 7.9 HSR 1,595 2014 Singyeongju ~Pohang 43 Conventional 8,286 2015 Jinju~Gwangyang 47 Conventional 9,400 2016 Pohang~Youngdeok 13 Conventional 2,626 2017 Wonju~Gangneung 2.6 Conventional 517 2018 Wonju~Jecheon 49 HSR 9,629 Total 170.5 34,033

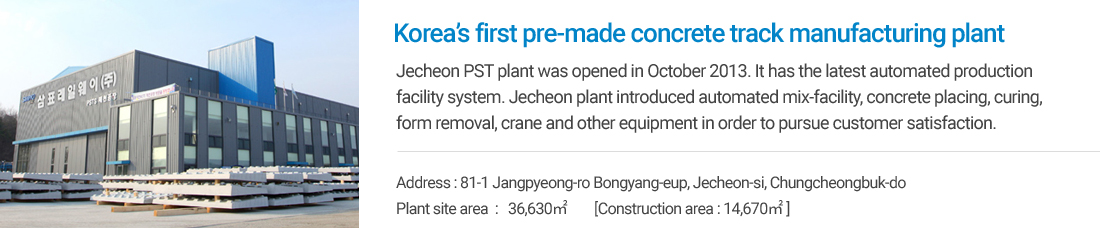

Introducing the plant
