Sampyo RailwayRail track components

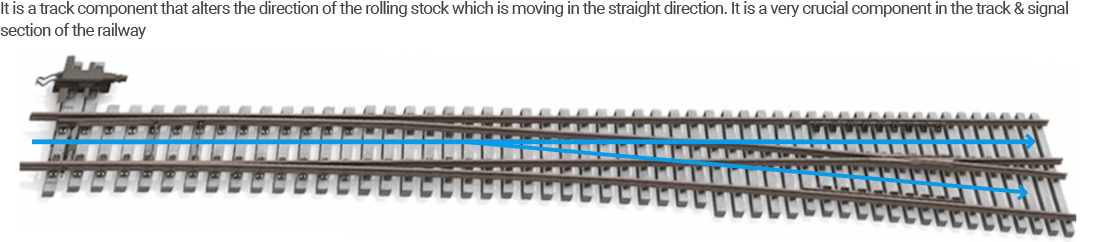

Turnout

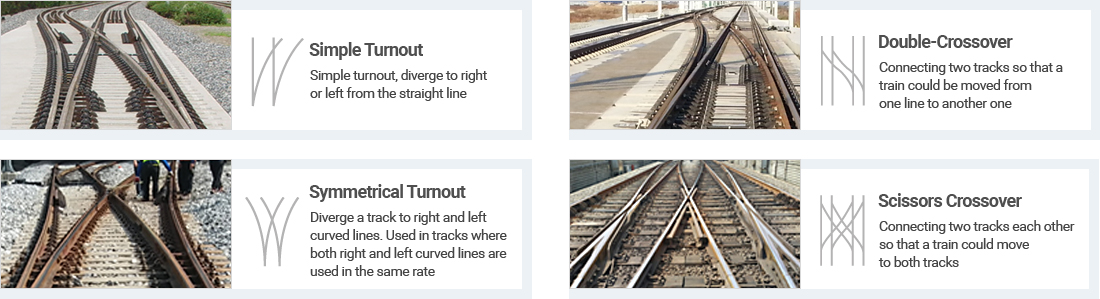

Type of Turnout
Product Type
| Product | Type | Note | |
|---|---|---|---|
| Turnout | HSR Turnout | F8, F10, F12, F18.5, F26, F46(Ballast, Concrete Track) | 60E1 |
| Movable Nose | 60kg #8, #10, #12, #15 (Rail or Cradle) | KS | |
| 60KG (WT, PCT, RCT) |
50kgNS #8, #10, #12, #15 (Mn-Crossing) | KS | |
| 60kg #8, #10, #12, #15 (Mn-Crossing) | KS | ||
| 50KG (WT,PCT) | 50kg #8, #10, #12, #15 (Mn-Crossing) | KS | |

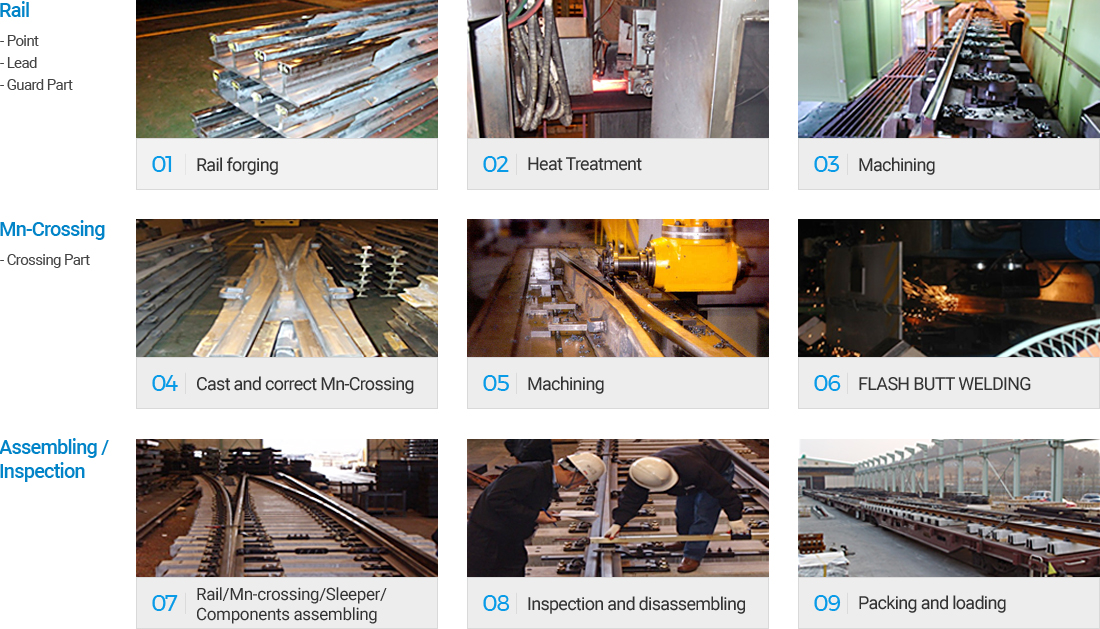

Turnout Production Process

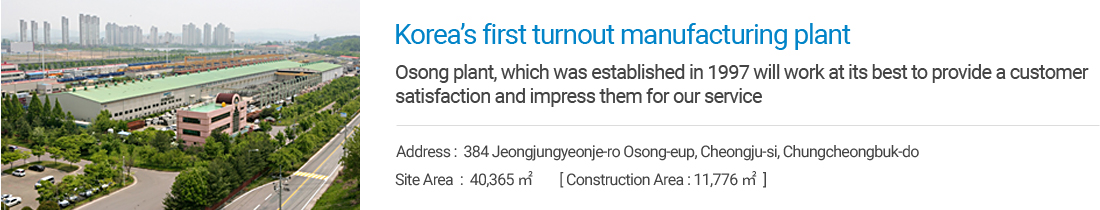

Introducing the Plant

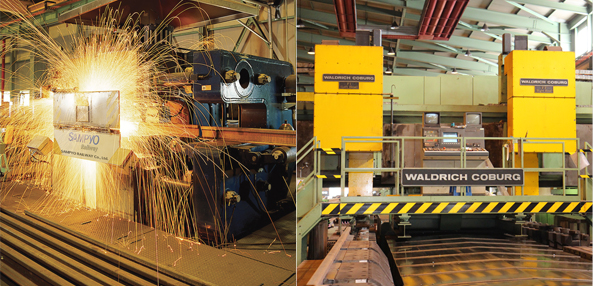

Status of major facilities
| Name of the Facility | Use |  |
|---|---|---|
| MILLING M/C HEAD(No. 1) | Rail (T/R and others) | |
| MILLING M/C(No. 2) | Machining rail and manganese | |
| MILLING M/C(No. 3) | Drilling hole at the rail and manganese | |
| FORGING PRESS | Rail forge | |
| FLASH BUTT WELDING M/C | Manganese and rail wedling | |
| RAIL HEAT TREATMENT | Heat treatment at the rail’s surface |
